Improved mapping accuracy for urban planning

Mapping Built-Up Land with High Accuracy Using Fourier Transformation and Temporal Correction

[2020]


Authors

Jinzhu Wang    Michalis Hadjikakou    Brett A. Bryan

Highlights

  • Mapping built-up land accurately is essential for urban policy and planning.

  • We used Fourier transformation and temporal correction to map the North China Plain.

  • Temporal predictors increased mapping accuracy from 85% to 93% in earlier years.

  • Temporal correction increased accuracy further to >94%.

  • High-accuracy mapping showed built-up land tripled from 1990 to 2019.

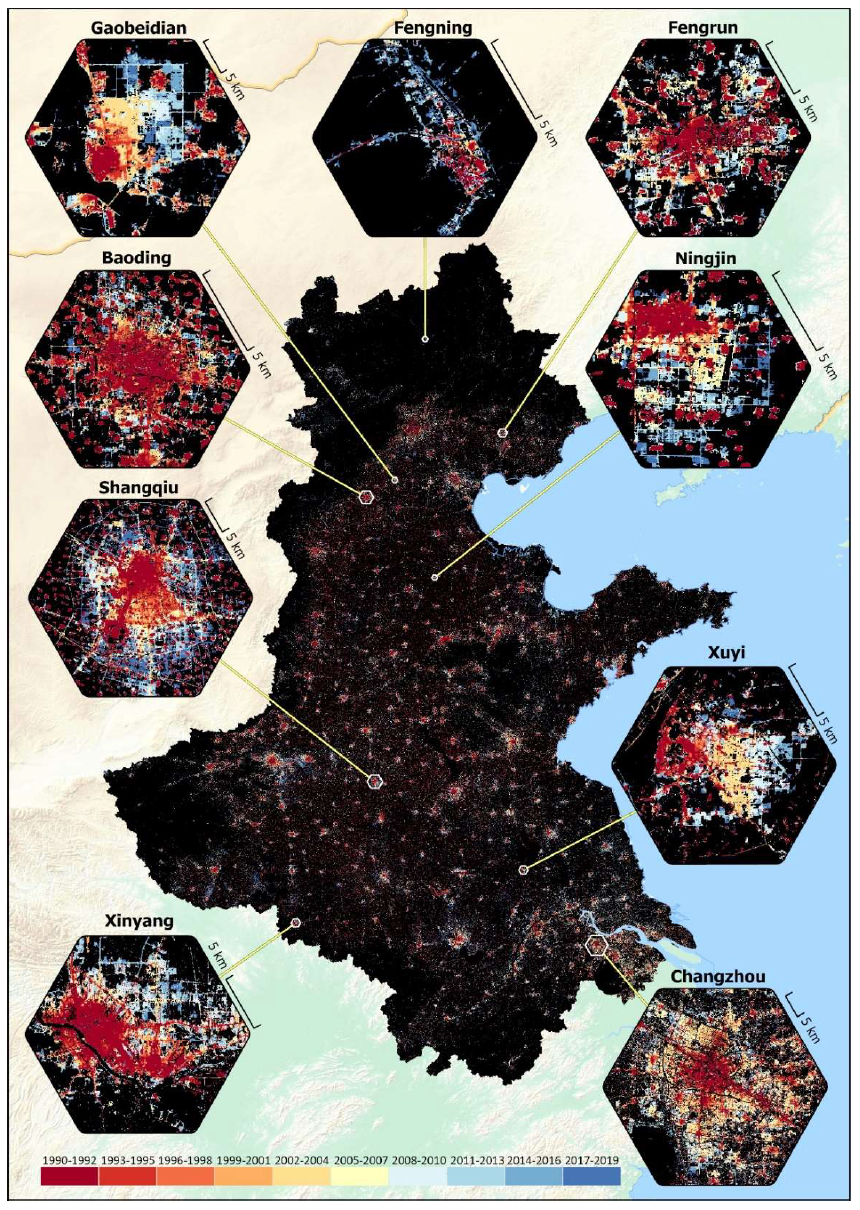

Figure 8. Dynamic map of built-up areas from 1990 to 2019. Warm colors indicate earlier dates while cool colors indicate later dates. Hexagonal insets show zoomed-in views of selected cities.

Figure 8. Dynamic map of built-up areas from 1990 to 2019. Warm colors indicate earlier dates while cool colors indicate later dates. Hexagonal insets show zoomed-in views of selected cities.

Abstract

Long-term, high-accuracy mapping of built-up land dynamics is essential for understanding urbanization and its consequences for the environment. Despite advances in remote sensing and classification algorithms, built-up land mapping using early satellite imagery (e.g., from the 2000s and earlier) remains prone to uncertainty. We mapped the extent of built-up land in the North China Plain, one of China’s most important agricultural regions, from 1990 to 2019 at three-year intervals. Using dense time-stack Landsat data, we applied discrete Fourier transformation to create temporal predictors and reduce mapping uncertainties for early years. We improved overall accuracy by 8% compared to using spectral and indices predictors alone. We implemented a temporal correction algorithm to remove inconsistent pixel classifications, further improving accuracy to a consistently high level (>94%) across years. A cross-product comparison showed that our study achieved the highest levels of accuracy across years. Total built-up land in the North China Plain increased from 37,941 km2 in 1990–1992 to 131,578 km2 in 2017–2019. Consistent, high-accuracy built-up land mapping provides a reliable basis for policy planning in one of the most rapidly urbanizing regions of the planet.
